Automatic stainless steel glue bottom seal case erector equipment
220 V 60HZ 400W
L11.875 "* W 10.125"H5.5 "~L16 "*W11 "*H12.875 "
Single production efficiency
Carton loss rate
Open carton type
Vertical & hot melt
1.Easy operation,machine can be used individually and combined with the packaging line.
2.The storage box mechanism: Can accommodate 50 cartons (depending on the carton thichness), and can be added at any time
3.Adopt Nordson hot melter.
4.Manually adjust to change the carton sizes(finishing in 2-3minutes).
5.Advanced photoelectricity induction control system.
6.Rationally designed, the forming, folding and sealing process are accomplished simultaneously.
7.Cutter Safety system to prevent hands form stabbed by the cutter.
8.Equipped with PLC(Siemens) system, saving labor and easy to operate.
9.Adopted international advanced technology, with imported parts and electrical components, this machine has a stable performance and long life-using.
10.The equipment design meet the process requirements and production line layout, beautiful appearance, good manufacturing process
11. Vertical storage,cartons can be added at any time without stopping the machine.
12.The machine has security protection function, such as overload protection and safety door etc.
13. Alarm function if there is no cardboard box

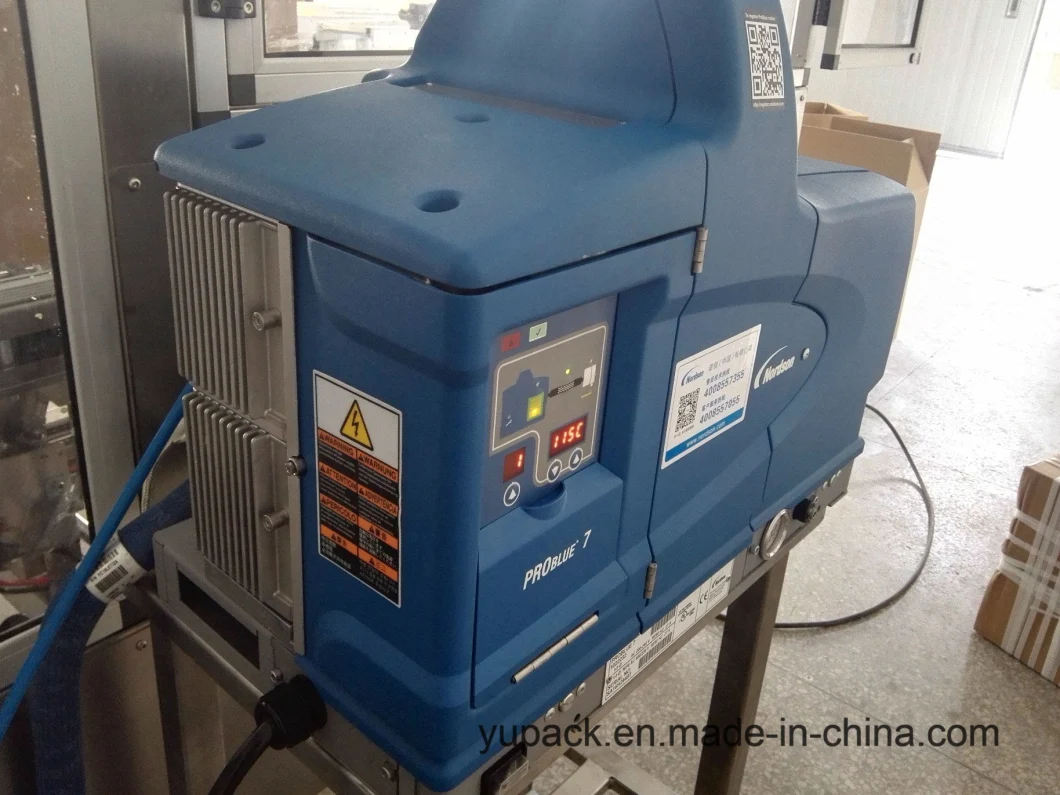

Hot Melter---Norsand Problue 7
*Approximately twenty percent smaller size
*Approximately fifty percent smaller service envelope
*High-level noise immunity
*Proven Nordson SP dual-acting piston pump
*PID temperature control
*Automatic Pressure Discharge Valve
*Low-level adhesive indicator
Glue Cylinder Volume
Max. Pump Rate
Air pressure Range
Input Voltage Standard
AC200-240V 1PH 50/60HZ
Ambient Temperature Range
Max. Working Hydraulic Pressure
Levels of protection
Qingdao Ausense was established in 2001,which is professionally specialized for the planning of complete end-of-line packaging equipment, R & D and manufacturing. After years of practice, we have automatic carton forming,carton package, sealing, shrinking, vacuum,strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipments. Company rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.
Ausense Company flagship brand "YUPACK".we provide vacuum machine, strapping machine,etc Chinese patents. All products had passed the European CE certification; manufacturing plants involved in the Chinese machinery industry standard "mechanical strapping machine""carton sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.
In 2016 year,Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard configuration equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry from 3.0 to 4.0 transformation and upgrading services to multi-industry.
Automatic stainless steel material hot melt glue carton erector
